86.16

Overview

Designer Plan Number:

86.16

Bedrooms:

4

Bathrooms:

3

Levels:

1

Sq. Ft.

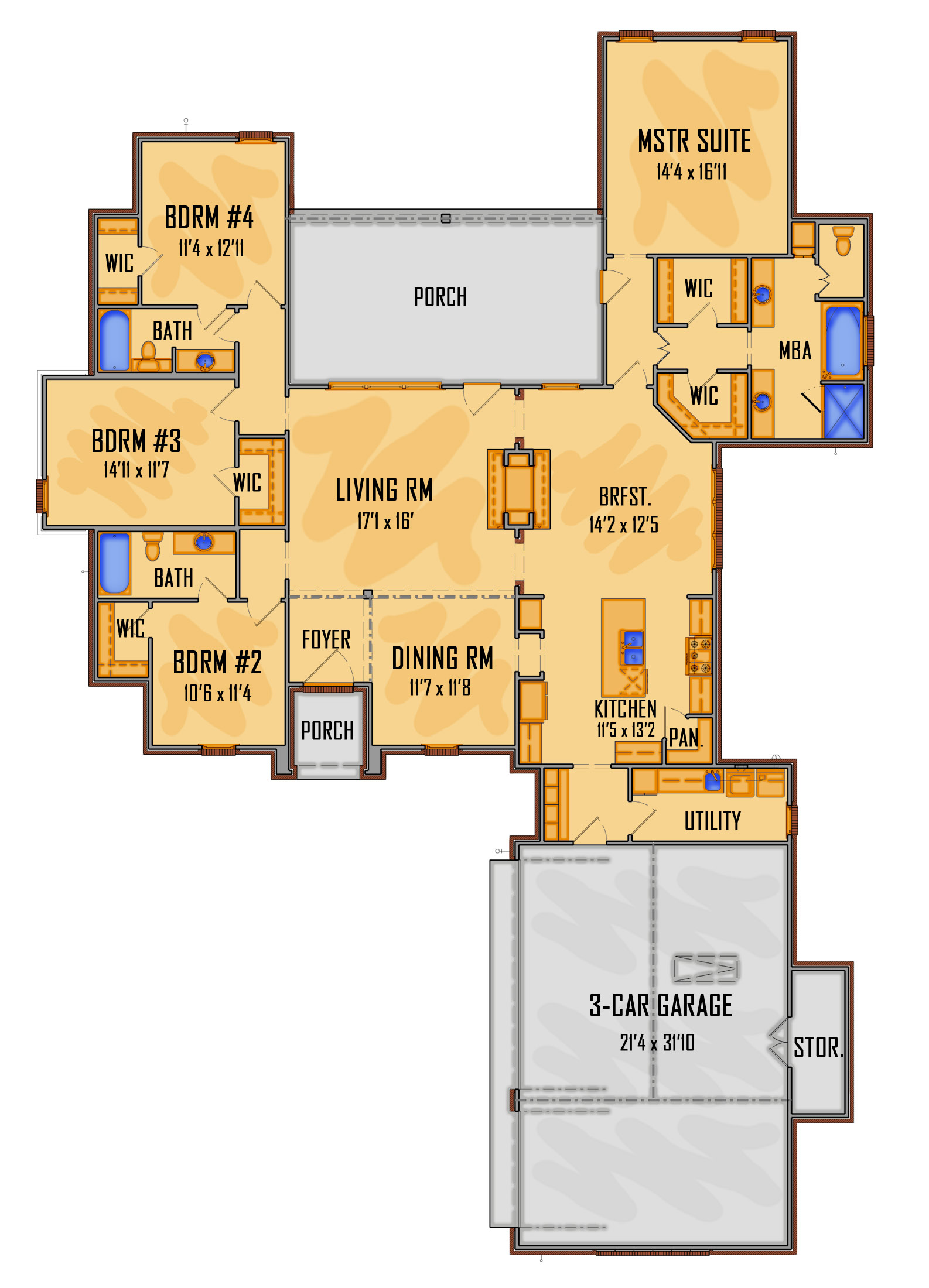

First Floor:

2413

Porches:

396

Total Heated and Cooled:

2518

Total Sq. ft. Under Roof:

3573

•
•

Details

Features

General Options:

Fireplace

Flex Space

Formal Dining

Foyer

Keeping Room

Mud Room

Open Floor Plan

Storage

Walk-in Closets

Kitchen Options:

Eating Bar in Kitchen

Island

Walk-in Pantry

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

His & Her Closets

Separate Tub and Shower

Garage

Garage:

764 (Including Storage)

Garage Stalls:

3

Garage Entry:

Courtyard

Style:

Acadian

French Country

Traditional

Dimensions

Width:

ft.:

66

in.:

5

Secondary Ceiling Height:

ft.:

9

in.:

0

Depth:

ft.:

97

in.:

4

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

16/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

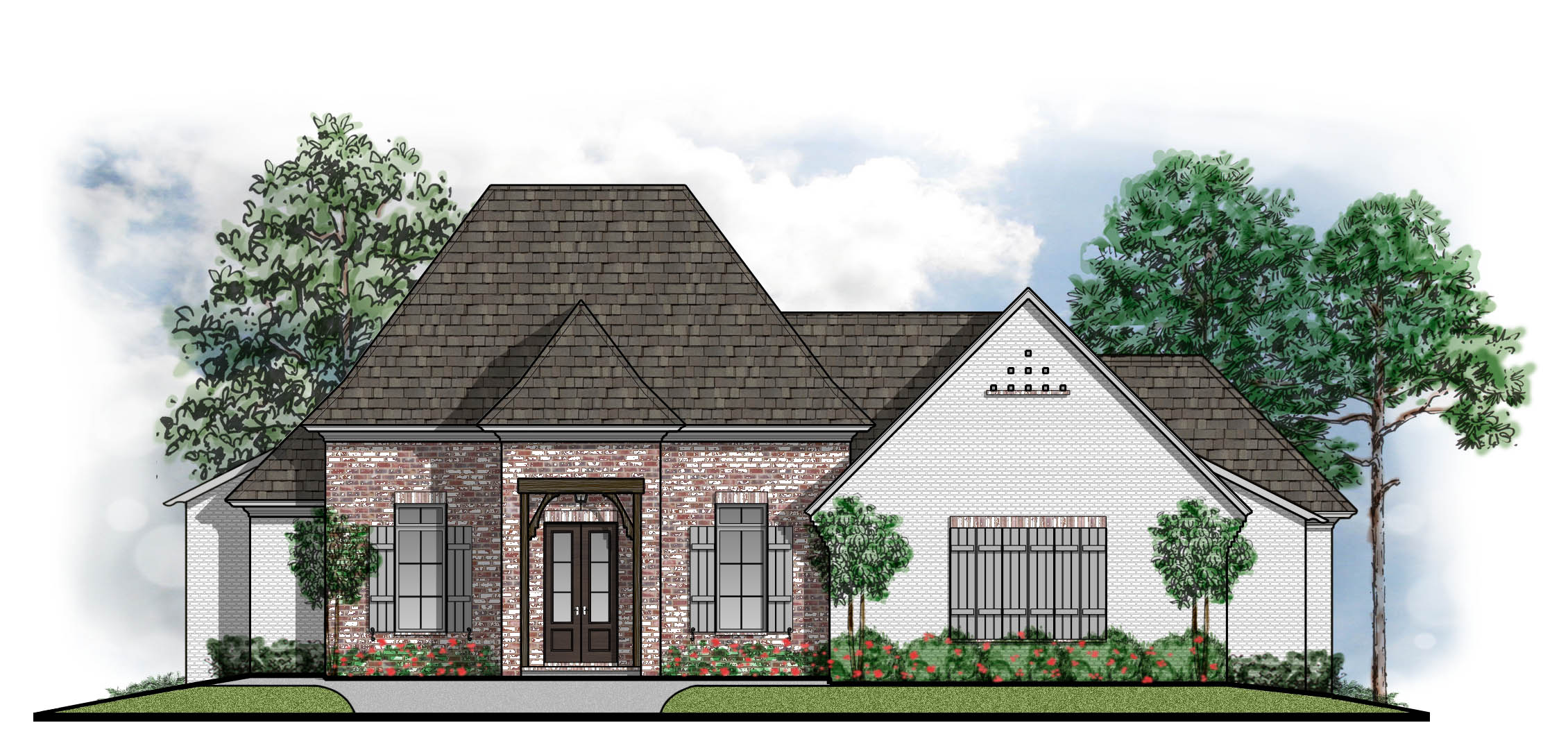

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)
