06.16

Overview

Designer Plan Number:

06.16

Bedrooms:

3

Bathrooms:

3

Levels:

1

Sq. Ft.

First Floor:

2179

Porches:

228

Total Heated and Cooled:

2266

Total Sq. ft. Under Roof:

2883

•
•

Details

Features

General Options:

Designed for Corner Lot

Designed for Narrow Lot

Fireplace

Formal Dining

Foyer

Mud Room

Storage

Walk-in Closets

Kitchen Options:

Double Ovens

Eating Bar in Kitchen

Island

Outdoor Kitchen

Master Suite Options:

Master on First Floor

Enclosed Toilet Room

Separate Tub and Shower

Garage

Garage:

476 (Including Storage)

Garage Stalls:

2

Garage Entry:

Front

Style:

Acadian

French Country

Traditional

Dimensions

Width:

ft.:

39

in.:

10

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

84

in.:

7

Main Ceiling Height:

ft.:

11

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

12/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

What's Included:

Cover Sheet

Cross Section{s}

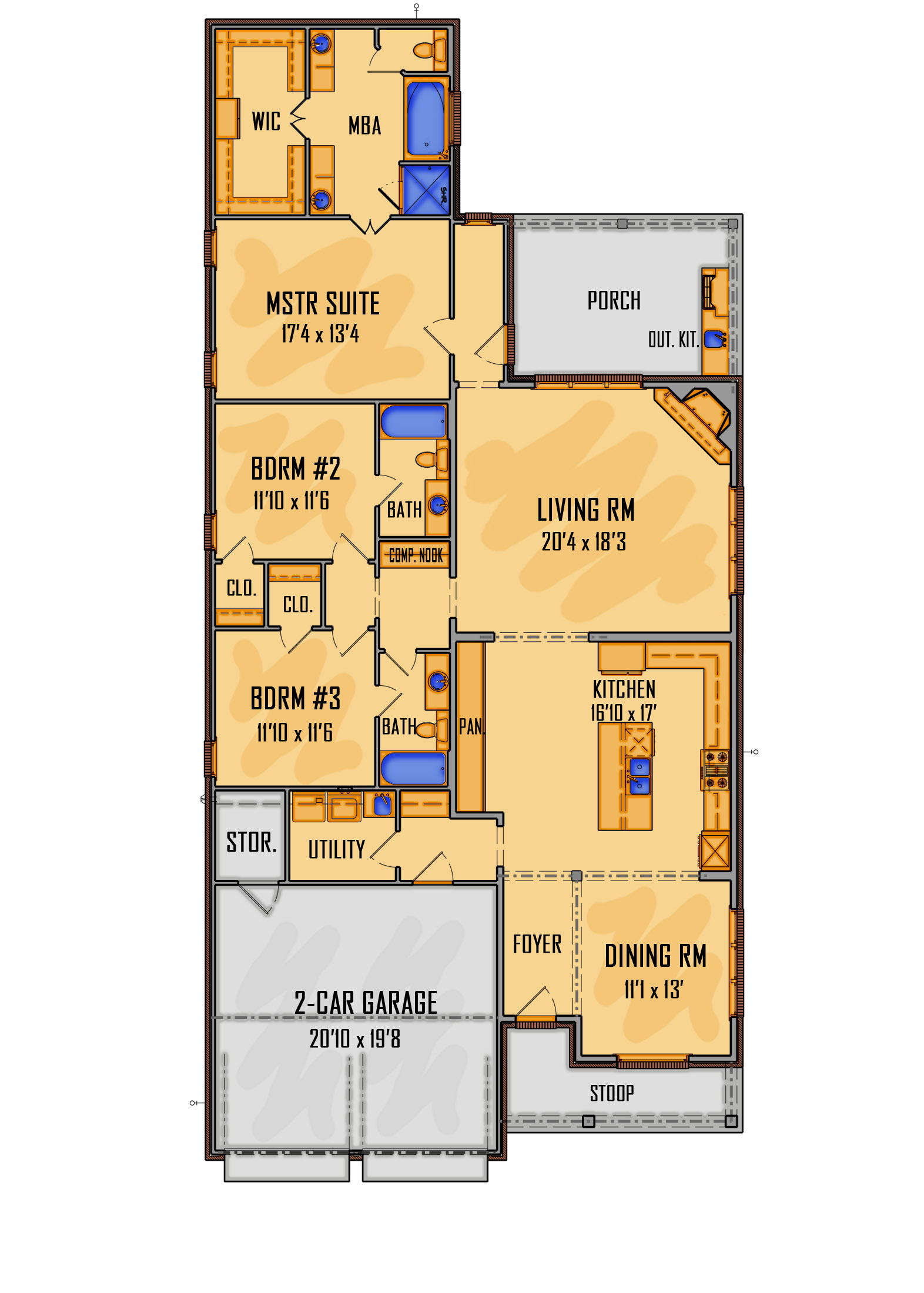

Detailed Floor Plan(s)

Electrical Plans

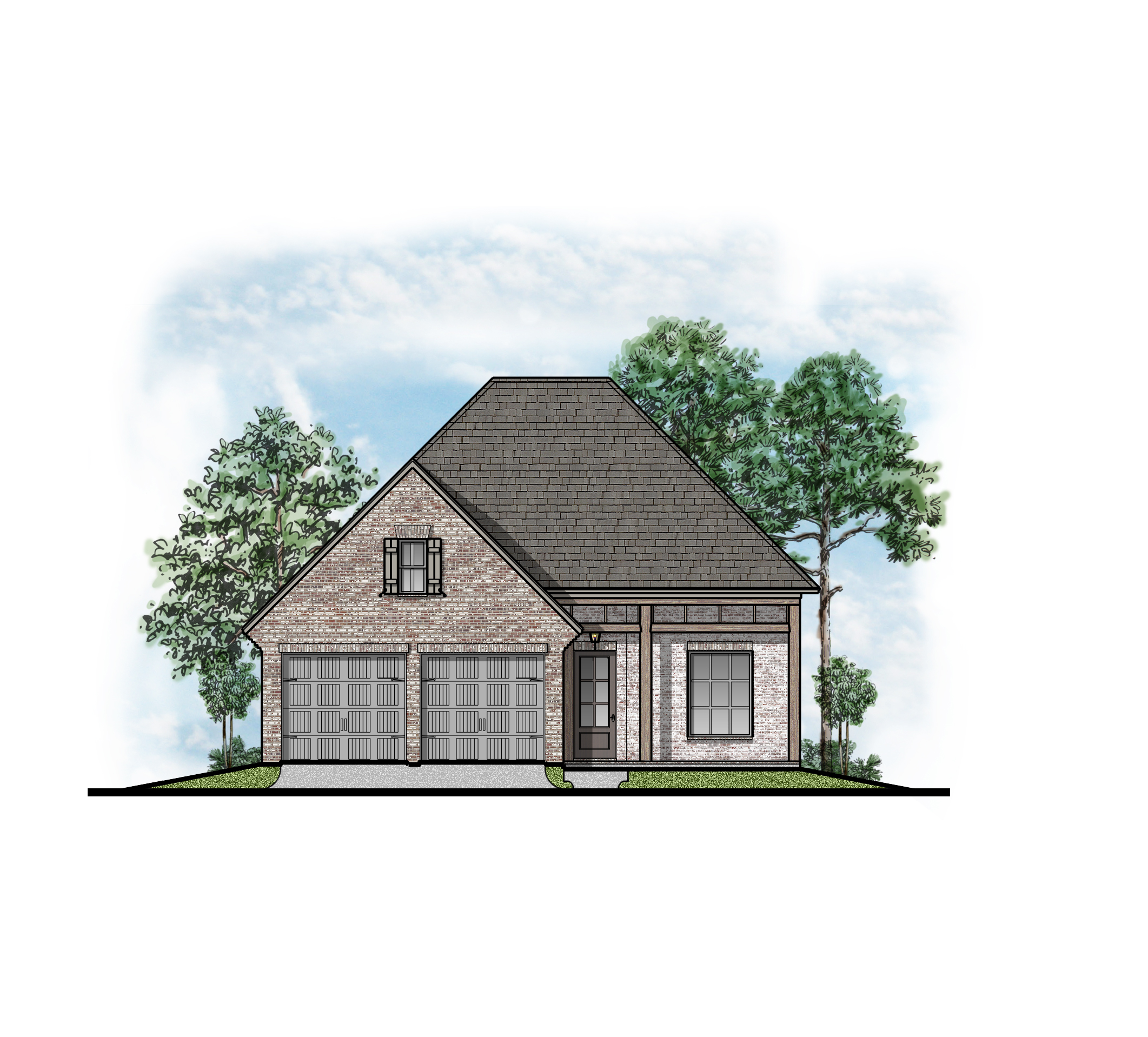

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)
